WIWA 2K Inject 230030 RS-F (1)

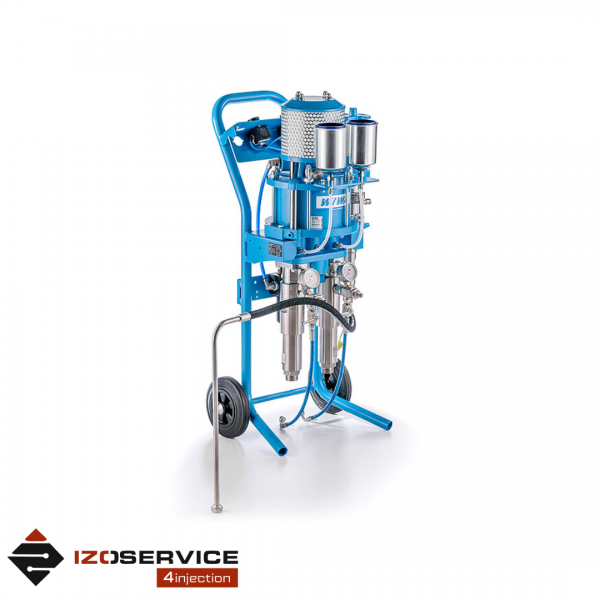

Pneumatic piston pump WIWA 2K Inject 230030 RS-F


nr katalogowy 06171

Catalog no.: 06171. Category: . Tagi: , , .
Description

WIWA 2K Inject 230030 RS/F is a professional, high-performance pneumatic piston 2K pump.
Designed for high-pressure injection or spraying of synthetic resin coatings (polyurethane and epoxy).

The pump is equipped with a flushing pump, a set of material hoses, and a large 3K injection head dedicated to high output.
The unit can be fitted with suction connections for pails (20–30 liters) or drums (200 liters) with a length of 3 meters.
The device is mounted on a stable trolley with two wheels for easy transport.

Applications:
The pump is designed for use with polyurethane, acrylic, and silicate resins.
It is ideal for the following applications:
– Soil injections
– Stabilizing injections
– Floor lifting
– Expansion joint filling
– Spraying of synthetic resin coatings

Features:
– High performance
– Working components of the material and flushing pumps made of stainless steel
– Universal Teflon piston seals allow operation with various materials (polyurethane, acrylic, or silicates)
– The piston mechanism does not heat the material during operation, preventing premature curing

Technical data:
Material pump

Gear ratio 30:1
Fixed mixing ratio of components A and B 1:1
Max. output 25L/min
Max. working pressure 240bar
Max. air pressure 8bar
Material hoses: 3/8″, length 15 m

Flushing pump

Gear ratio 33:1
Working pressure 1-264bar
Max. output 3L/min
Pressure outlet hose 1/4″
Suction hose 1.5 m
Material hoses: 3/8″, length 15 m
Weight 90
